Drop-pit: The total driving range automation system

x close

Process

Drop-pit: from custom-made to module

  • 01 Collecting

  • 02 Docking and dropping

  • 03 Washing

  • 04 Transport

  • 05 Dispenser


Collecting

Collecting

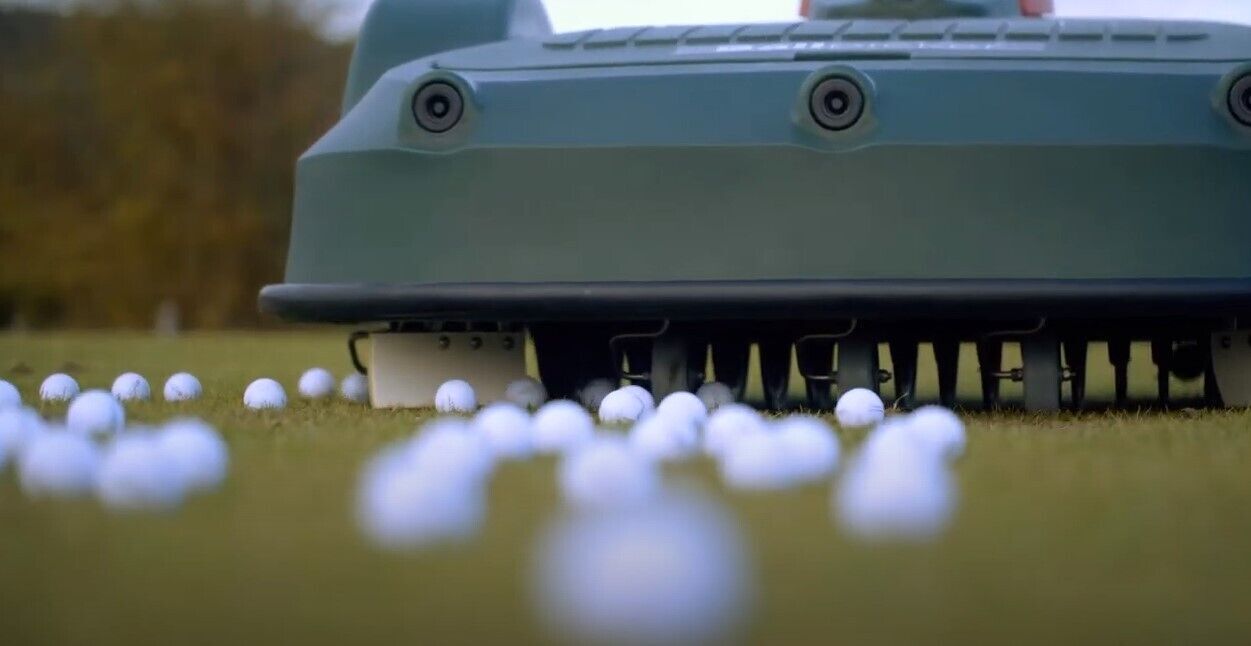

The automated ball system is responsible for washing and transporting the golf balls to the dispenser. It works together with the robot ballpicker that collects the golf balls on the driving range.

More info

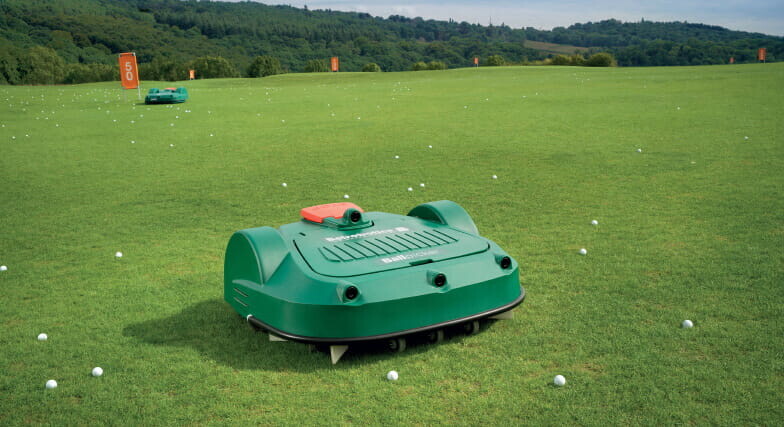

Call to action image Ballpicker collects all balls on the driving range
Docking and dropping

Docking and dropping

When the robot's collection bin is full, it returns to its charging station and drops the balls via the grid into the Drop-pit. The drop-pit itself consists of a stainless steel tray (dropzone) with a grid for the golf balls. This is placed in the ground at the place we decide together with the customer and is where the ballpicker drops the golf balls.

More info
Call to action image Docking and dropping
Washing

Washing

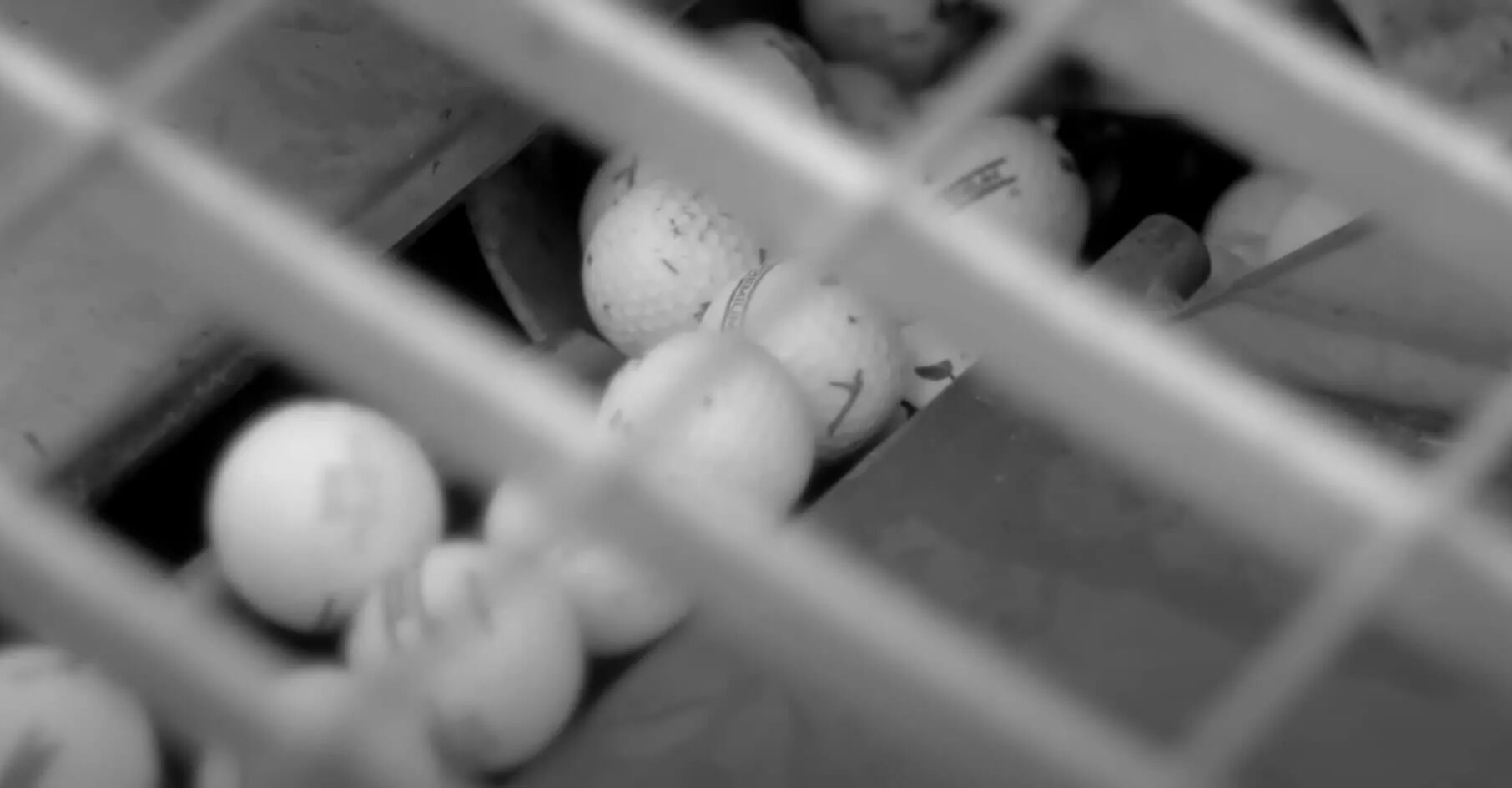

Next, the golf balls roll into the ball washer, which removes mud and grass from the balls. From that moment on the ball washer starts working and the balls enter the transport chute where they are also counted.

More info
Call to action image Wash
Transport

Transport

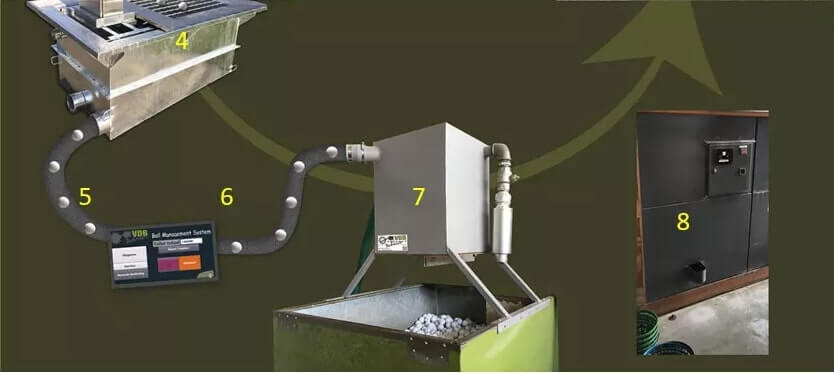

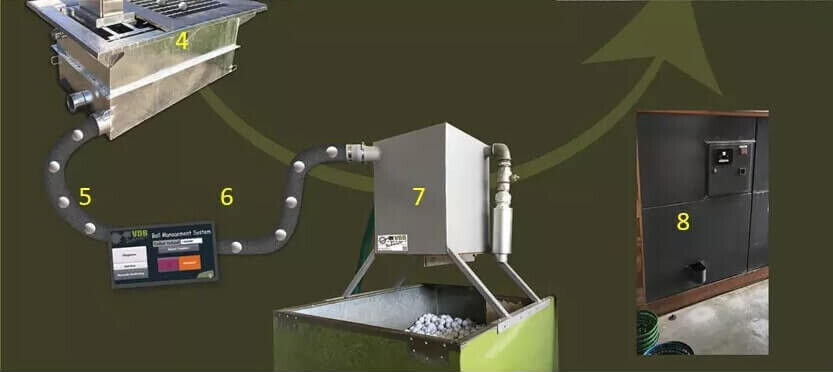

The golf balls are transported through a vacuum system by an air system that can handle up to 300 balls at the time. The PE tube, which is custom made, has an exact wall thickness and structure to give as little resistance as possible to the flow of balls. It forms the ideal balance between diameter and air flow.

More info
Call to action image Transport
Dispenser

Dispenser

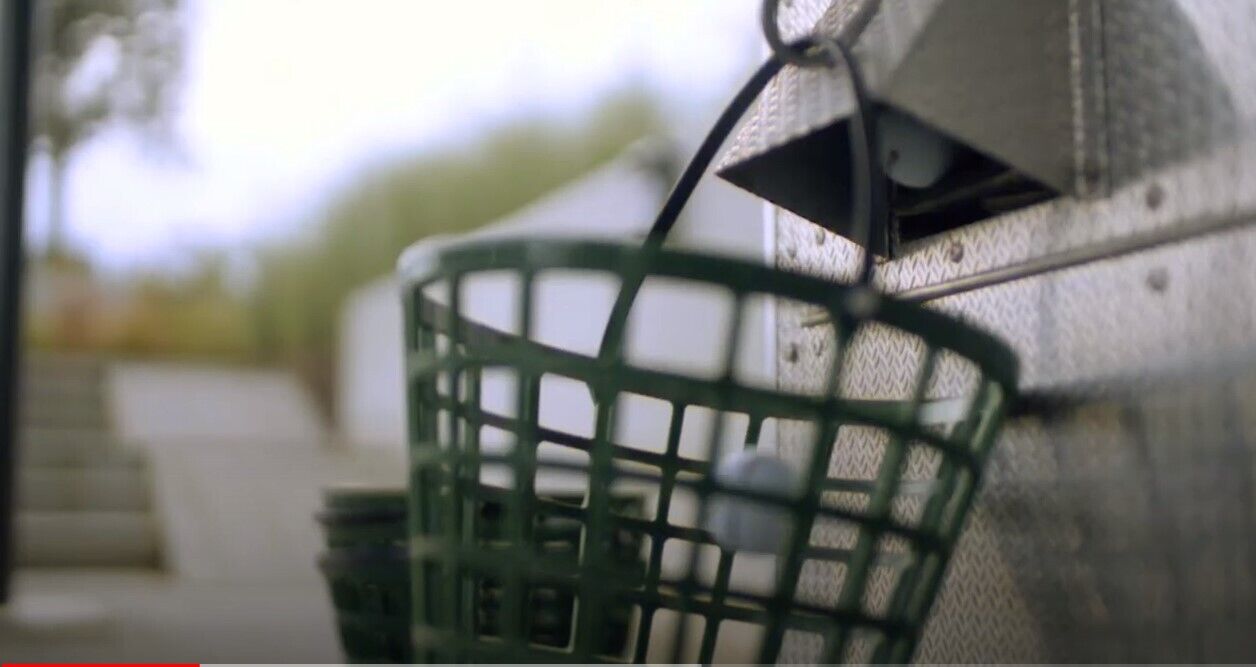

The transported and washed balls fall into the despenser and are now ready for use.

More info
Call to action image Dispenser

Advantages

Why choose a complete Ball Management System?

More on the advantages

Compatibiliteit

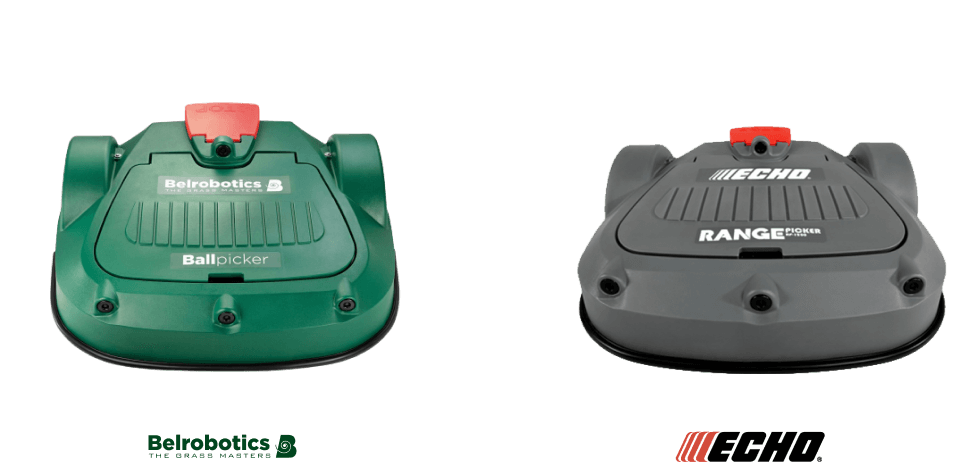

At the moment our
system is compatible with

Home

These courts already chose drop-pit

Call to action image

Modernise your golf course

Convinced of the advantages?

Contact us for a free tailor-made offer

Apply for quotation
